Summary

License: CC-BY-4.0

Source: Figure 1. in:
Nishiyama, N. et al. Transparent polycrystalline cubic silicon nitride. Sci. Rep. 7, 44755; doi: 10.1038/srep44755 (2017).

https://www.nature.com/articles/srep44755
https://www.researchgate.net/publication/315348384_Transparent_polycrystalline_cubic_silicon_nitride

Direct link to figure:
https://www.researchgate.net/figure/Transparent-polycrystalline-cubic-silicon-nitride-a-A-photograph-of-a-bulk_fig1_315348384

Figure text:

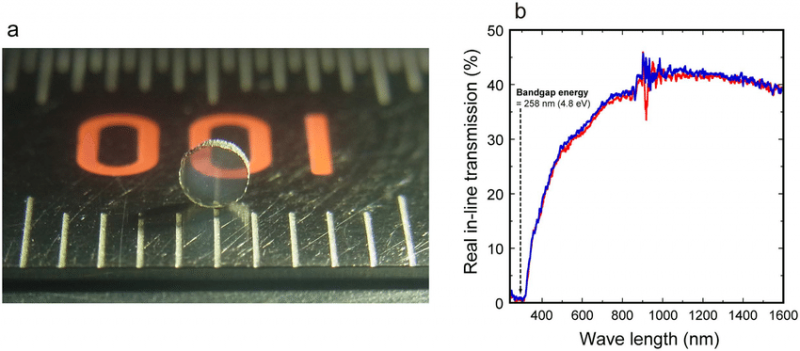

"Figure 1. Transparent polycrystalline cubic silicon nitride. (a) A photograph of a bulk nanocrystalline form of c-Si3N4 synthesized at 15.6 GPa and 1800 °C. the division of the ruler (this side) is 1 mm. The thickness of the sample is 0.464 mm. (b) Real in-line transmission as a function of wave length. More than ten measurements were performed by rotating the sample around the light axis and by turning the sample over (the polished surfaces were always perpendicular to the light axis) in order to confirm that there is no orientation dependence of the transmission. The red and blue lines show the two representative results."

Licensing

Template:Cc-by-4.0
